Anti-Dust Kit:
After installing this anti-dust kit, inverter will automatically detect
this kit and activate internal thermal sensor to adjust internal
temperature. By virtue of the dustproof design, it dramatically
increases product reliability in harsh environment.
Key Features:
Pure sine wave solar inverter
Output power factor 1
Parallel operation up to 9 units
High PV input voltage range
Battery independent design
Built-in 100A MPPT solar charger
Battery equalization function to optimize battery performance and extend lifecycle
Built-in anti-dusk kit for harsh environment
- Parameter

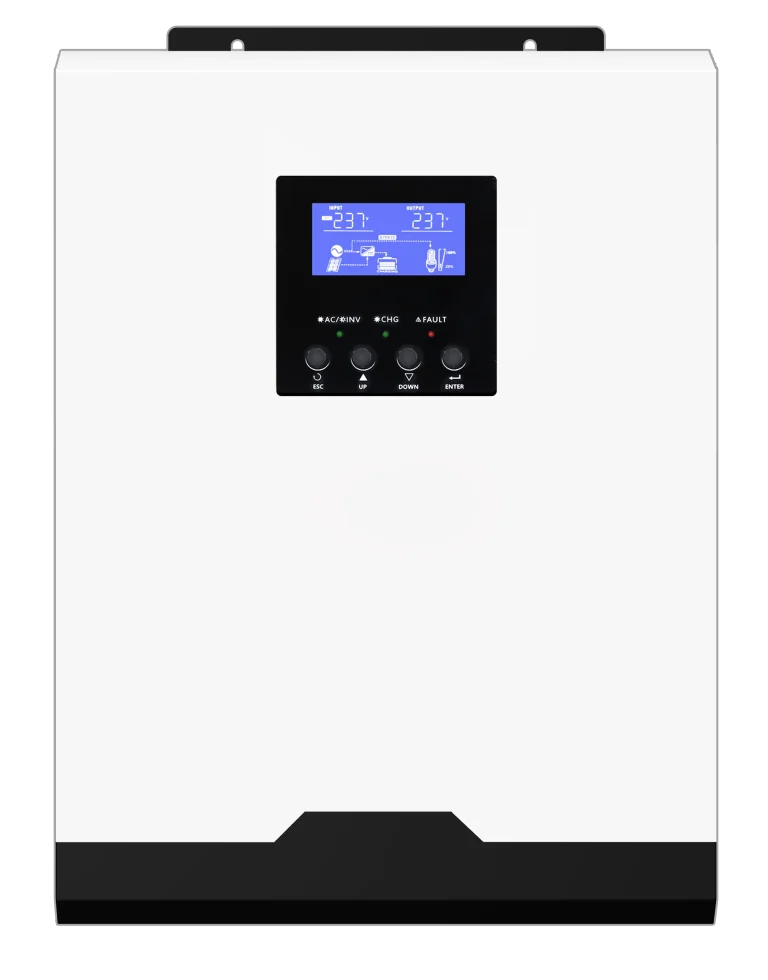

REVO VM II Series
Wall Mounted Integrated Solar Inverter Technical Specification
Built-in MPPT Solar Controller
| MODEL | REVO VM II 3000-24 | REVO VM II 5500-48 |
| Rated Power | 3000VA / 3000W | 5500VA / 5500W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 6000VA | 11000VA |
| Efficiency (Peak) | 90% ~ 93% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 500 VDC | 500 VDC |
| Maximum PV Array Power | 5500 W | 5500 W |
| MPPT Range @ Operating Voltage | 120~450 VDC | 120~450 VDC |
| Maximum Solar Charge Current | 100 A | 100 A |
| Maximum AC Charge Current | 80 A | 80 A |
| Maximum Charge Current | 100 A | 100 A |
| PHYSICAL | ||
| Dimension, D x W x H (mm) | 100 x 300 x 440 | |
| Net Weight (kgs) | 9 | 10 |
| Communication Interface | USB/RS232 | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
