Since 2006, Shenzhen SOROTEC Electronics Co., Ltd. has led advancements in power electronics and smart new energy. As a nationally recognized high-tech enterprise, they supply innovative UPS systems, active filters, and sophisticated solar solutions to customers around the world. Their knowledge covers more than a decade of refining dependable, tailored power setups for telecom, finance, and industrial fields. For smooth integration and superior engineering, rely on this skilled producer to offer quality renewable energy options.
If you just installed new high-wattage solar panels on your roof, your power output may not meet what you hoped for. The issue usually stems from a mismatch between the panels and your inverter. To get the most from your spending, choose a high-input current hybrid inverter. It can manage the large amounts of electricity generated by today’s panels without trouble.
The Rise of High-Wattage Solar Panels in Modern Energy Systems
Today’s solar setups generate much more power than past versions. This brings fresh challenges to your current electrical setup.
Evolution of High-Power Solar Module Technology
Solar tech keeps improving. Now, 540Wp to 600Wp monocrystalline panels lead the market. They provide excellent efficiency in turning sunlight to power. These panels reach high output mainly by boosting the working current. For example, a typical 540Wp panel can deliver over 13 Amps at peak.
Limitations of Standard Solar Inverters
Many older or basic inverters suit 300W panels. They often limit input current to 12A to 15A per MPPT string. Pairing them with new, high-current panels creates a major block in the system.
Consequences of Inverter Bottlenecks
If your solar panel sends more amps than the inverter allows at 12 Amps, the setup cuts back the flow. As a result, extra energy gets lost. This cutback lowers total power production. It wastes the higher cost of those high-wattage solar panels.
| Panel Technology | Standard Power Output | Peak Power Current (Imp) | Short-Circuit Current (Isc) |
|---|---|---|---|
| Older Polycrystalline | 300W | 8.50A | 9.10A |
| Modern Monocrystalline | 445W | 10.80A | 11.52A |
| Advanced Monocrystalline | 540W | 13.08A | 13.90A |
Analyzing Inverter Input Current and Energy Clipping
To avoid wasting power, examine how your system handles incoming direct current (DC) closely.
Definition of Photovoltaic Input Current Specifications
Each inverter includes a clear max DC input current rating. This figure sets the top level of amps the device can take from the solar array safely. Beyond that, it starts limiting the flow to guard its parts.
Mechanics of Solar Power Clipping Losses
Clipping occurs when the solar array makes more DC current than the inverter turns into AC power. To protect itself, the inverter boosts the DC voltage. Consequently, panels shift away from their best power point. This leads to ongoing loss of top energy production.
Financial Impact on Solar Investments
Clipping affects your budget right away. A drop of 10% to 15% in daily output stretches the time to recover your costs. However, a high-input current hybrid inverter lets you capture all solar energy. Thus, it speeds up your financial return.
Key Benefits of High-Input Current Hybrid Inverters
Switching to better core equipment fixes these power blocks right away. It brings clear gains to your site.
Maximization of Solar Energy Harvest
The setup gathers every bit of sunlight energy. With hardware that fits the panel current well, it runs at full strength. This produces far more electricity in strong midday sun.
Future-Proofing for System Expansion
Your site stays ready for growth. If more powerful 600W+ panels go on the roof later, the system handles the extra amps easily. No need for a costly new inverter then.
Enhancement of Battery Storage Charging
Energy storage fills up quicker. Such a strong high-input current hybrid inverter sends large solar flows to lithium or lead-acid batteries fast. So, full backup power waits before nightfall.

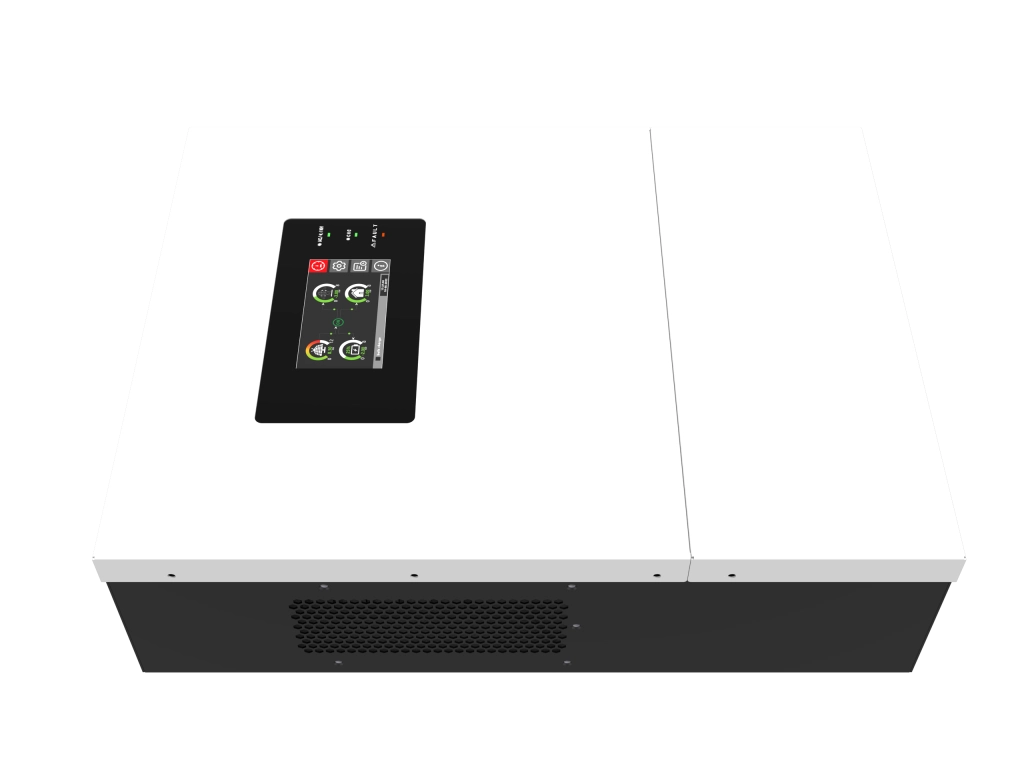

The Ultimate Solution: REVO HMT G2-IP54 Inverter
Devices that manage big currents with clever grid control are uncommon. Yet, this model provides just that.
Superior 27A and 40A Photovoltaic Input Capacity
The unit backs large power arrays with ease. Models from 4kW to 6kW offer 27A max photovoltaic input current. Meanwhile, 8kW to 11kW versions take on 40A. Large modern panels connect without fear of clipping.
Smart Load Management via Dual Output Ports
Key devices stay on in crises. With two output ports, it offers wise load handling. Prioritize vital items in grid outages. At the same time, cut non-essential heavy loads to preserve battery power.
Rugged IP54 Protection for Outdoor Installations
Indoor room stays free. The tough IP54 shell guards against dust and moisture well. Mount it outside on a wall safely. It holds up to rough weather conditions.
| Feature | Standard Home Inverter | REVO HMT G2-IP54 (8-11kW) |
|---|---|---|
| Max PV Input Current | 15A | 40A |
| Panel Compatibility | Up to 350W | 540W+ High-Wattage Panels |
| Energy Clipping | High Risk | Zero Risk |
| Smart Load Outputs | Single Port | Dual Output Ports |
Real-World Scenarios and Proven Solar Applications
Solid specs lead to real outcomes in homes and businesses. For examples, check case studies of successful installs worldwide.
Independence for Residential Off-Grid Users
Energy independence becomes real. High-wattage panels with this inverter make and store plenty of power fast. Homes off-grid keep lights on through extended cloudy periods.
Peak Shaving for Commercial Facilities
Business power costs drop sharply. Charge batteries from the grid in low-rate times. Then, use stored power at peak utility prices.
Integration of Existing System Upgrades
Old setups upgrade smoothly. When new panels replace dated ones, this inverter fits in without rewiring the whole system.
Empower Your Energy Future with Professional Services
Top equipment needs strong maker support and tech help.
Provision of Professional OEM and ODM Services
Manufacturing adapts to needs. Distributors or brand owners can customize gear for local markets through OEM and ODM options.
Review of Global Company Legacy
Team up with an established leader. Learn more by reading about us. See years of supplying trusted, certified power gear across continents.
Direct Contact for Customized Solar Solutions
Grow your work with maker aid. For one unit in a big home or bulk for projects, use the contact us page. Get your high-input current hybrid inverter now.
FAQs
Q: Why do I need a high-input current hybrid inverter for my property?
A: A high-input current hybrid inverter matches the large amps from modern 500W+ solar panels. Basic inverters limit the current. This causes daily loss of useful solar power.
Q: What happens when solar panel current exceeds the inverter limit?
A: If panel current goes over the limit, the inverter raises voltage to control the flow. Panels then miss peak efficiency. This wastes power that could be made.
Q: Does the REVO HMT G2-IP54 support advanced battery communication?
A: Yes. It works with lithium batteries through RS485 and CAN ports. Batteries charge safely and well, which helps them last longer.
